What Causes Hydraulic Pump Whine – Ultimate Guide

Hydraulic systems are an essential part of many machines and equipment. They help transfer power from one point to another by using hydraulic fluid and a hydraulic pump. The pump is the heart of the hydraulic system, responsible for circulating the fluid, generating pressure and flow, and enabling the operation of actuators such as cylinders and motors. However, one common issue that can arise is hydraulic pump whine, which is characterized by a high-pitched, unpleasant noise emanating from the pump or other hydraulic components. In this article, we will discuss the What Causes Hydraulic Pump Whine? And diagnosis, and solutions for hydraulic pump whine as well.

Understanding the Functioning of a Hydraulic Pump:

Before diving into the causes of hydraulic pump whine, it is essential to understand how a hydraulic pump works. Hydraulic pumps are classified into three main types: gear pumps, vane pumps, and piston pumps. All three types of pumps work on the principle of positive displacement, meaning they trap and transfer a fixed amount of fluid with each rotation or stroke.

In a gear pump, two intermeshing gears rotate in opposite directions, drawing fluid into the space between the teeth and pushing it out to the outlet. Vane pumps use a series of sliding vanes that sweep the fluid from the inlet to the outlet. Piston pumps use pistons that reciprocate inside a cylinder, drawing in fluid during the intake stroke and pushing it out during the discharge stroke.

view on amazon

Common Causes of Hydraulic Pump Whine:

Overworking of the Hydraulic System: One of the primary causes of hydraulic pump whine is overworking the hydraulic system. If the system is subjected to excessive pressure, flow, or temperature, it can cause the pump to work harder and create more noise. This can be due to incorrect system design, inadequate component sizing, or misuse of the machine or equipment.

Contamination in Hydraulic Fluid: Another common cause of hydraulic pump whine is contamination in the hydraulic fluid. Dirt, debris, water, or air bubbles in the fluid can cause the pump to work harder, leading to increased noise. Contamination can also damage the pump and other hydraulic components, leading to further issues.

Inadequate Lubrication: Hydraulic pumps require proper lubrication to operate smoothly. If there is insufficient oil or the oil is not of the right quality, it can cause the pump to create more noise due to increased friction and wear.

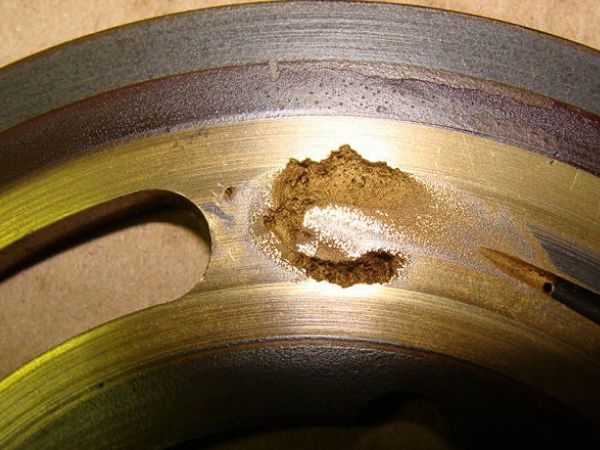

Cavitation in Hydraulic Pumps: Cavitation occurs when the fluid pressure drops below the vapor pressure, causing air bubbles to form in the fluid. This can cause a whining noise as the bubbles collapse, leading to damage to the pump and other components.

Mechanical Damage to Hydraulic Components: Mechanical damage to hydraulic components, such as wear or misalignment of gears or bearings, can also cause pump whine. This damage can be caused by improper installation, poor maintenance, or excessive use.

Age and Wear and Tear: Like any mechanical component, hydraulic pumps can experience wear and tear over time. As the pump ages, the components may become worn or damaged, leading to increased noise.

Vane Pump Design and Whine: Vane pumps are prone to whine due to their design, which uses sliding vanes that can create high-frequency vibrations and noise.

Piston Pump Design and Whine: Piston pumps can also create whine due to their reciprocating motion, which can cause pressure pulsations and noise.

Gear Pump Design and Whine: Gear pumps are generally the quietest of the three pump types, but they can still create whine if there is excessive wear or misalignment of the gears.

How to Diagnose a Whining Hydraulic Pump:

To diagnose hydraulic pump whine, it is necessary to determine the source of the noise. This can involve inspecting the hydraulic system for damage and checking the fluid level and quality. Here are some steps to diagnose a whining hydraulic pump:

Visual Inspection: Start by visually inspecting the hydraulic system for any visible signs of damage, leaks, or loose components. Look for worn or misaligned gears, damaged vanes or pistons, and any signs of contamination or inadequate lubrication.

Fluid Analysis: Check the hydraulic fluid level and quality. Ensure that the fluid level is within the recommended range and inspect for any signs of contamination, such as particles, water, or foaming. If the fluid appears dirty or contaminated, it may be necessary to drain and replace it.

Noise Location: Pinpoint the source of the noise. Use a stethoscope or a listening device to listen to various components of the hydraulic system, including the pump, valves, and actuators. By listening closely, you can identify the specific component responsible for the whining noise.

Pressure and Flow Testing: Conduct pressure and flow tests to assess the performance of the hydraulic system. Measure the pressure at different points in the system and compare it to the recommended specifications. Additionally, measure the flow rate to ensure it is within the required range. Abnormal pressure or flow readings can indicate underlying issues causing the pump whine.

Professional Inspection: If the source of the whining noise is not apparent or if you are unsure about the diagnosis, it is advisable to consult a hydraulic system expert or a professional technician. They have the knowledge and tools to conduct a thorough inspection and provide accurate recommendations.

The Importance of Regular Hydraulic System Maintenance:

Regular maintenance plays a vital role in preventing hydraulic pump whine and ensuring the overall health and performance of the hydraulic system. Here are some key maintenance practices:

1. Fluid Maintenance: Regularly check the hydraulic fluid level and condition. Replace the fluid at recommended intervals and use high-quality, recommended fluid types. Proper filtration systems should also be in place to remove contaminants from the fluid.
2. Filter Replacement: Replace hydraulic filters as per the manufacturer’s guidelines. Clogged or dirty filters can lead to inadequate lubrication and increased wear on the pump and other components.
3. Component Inspection: Periodically inspect hydraulic system components for signs of wear, misalignment, or damage. Replace worn or damaged parts promptly to prevent further issues.
4. Proper Lubrication: Ensure that all moving parts, including pump gears, vanes, and pistons, are adequately lubricated. Use lubricants recommended by the manufacturer and follow the lubrication schedule.
5. System Design and Operation: Ensure that the hydraulic system is designed and operated within recommended parameters. Avoid overloading the system, exceeding pressure and temperature limits, or subjecting it to harsh operating conditions.

How to Reduce or Eliminate Hydraulic Pump Whine:

Once the cause of the hydraulic pump whine is identified, appropriate measures can be taken to reduce or eliminate the noise. Here are some steps to consider:

Address Contamination: If the whine is caused by contamination in the hydraulic fluid, thoroughly clean the system and replace the fluid. Install proper filtration systems to prevent future contamination.

Improve Lubrication: Ensure that the hydraulic pump and other components are properly lubricated. Use high-quality lubricants and follow the manufacturer’s recommendations.

Repair or Replace Damaged Components: If mechanical damage or wear is causing the whine, repair or replace the affected components. This may involve realigning gears, replacing worn vanes or pistons, or rebuilding the pump.

Address Cavitation Issues: To prevent cavitation, ensure that the hydraulic system operates within the recommended pressure range. Modify system design if necessary and use anti-cavitation valves or measures to reduce pressure drops.

Upgrade or Modify Pump Design: In some cases, upgrading to a more advanced or quieter pump design may be a solution. Consult with a hydraulic system expert or manufacturer to explore options for quieter pump designs that can reduce noise levels.

Soundproofing and Vibration Dampening: Implement soundproofing measures around the hydraulic system to reduce noise propagation. This can include using acoustic insulation materials or enclosures. Additionally, consider installing vibration dampening devices to minimize vibrations that contribute to pump whine.

Repairing or Replacing a Whining Hydraulic Pump:

If the hydraulic pump is determined to be the source of the whine and the issue cannot be resolved through maintenance or adjustments, repairing or replacing the pump may be necessary. Consult with a hydraulic specialist or technician to determine the most appropriate course of action based on the specific circumstances and condition of the pump.

Hydraulic Pump Whine in Mobile and Industrial Applications:

Hydraulic pump whine can occur in various applications, both mobile and industrial. From construction equipment and agricultural machinery to manufacturing processes and hydraulic presses, any system utilizing hydraulic power is susceptible to pump whine. It is important to address the issue promptly to prevent further damage, reduce noise pollution, and ensure the reliable operation of the equipment.

Case Studies: Examples of Hydraulic Pump Whine:

To provide practical insights, let’s consider a couple of case studies involving hydraulic pump whine:

1. Case Study: Construction Excavator In a construction excavator, a whining noise is detected from the hydraulic system. After inspection, it is revealed that the hydraulic fluid is contaminated with dirt and debris, causing increased friction and strain on the pump. The solution involves draining and replacing the fluid, installing effective filtration systems, and conducting regular fluid maintenance to prevent future contamination and reduce pump whine.
2. Case Study: Hydraulic Press A hydraulic press used in an industrial setting produces a loud whining noise during operation. After diagnosing the issue, it is determined that the noise is caused by cavitation due to improper system design and excessive pressure drops. The remedy includes modifying the system design, installing anti-cavitation valves, and ensuring proper pressure regulation to eliminate cavitation and reduce pump whine.

Benefits of Addressing Hydraulic Pump Whine:

Addressing hydraulic pump whine offers several benefits, including:

1. Enhanced Equipment Performance: Resolving pump whine issues ensures that the hydraulic system operates optimally, leading to improved equipment performance and productivity.
2. Increased Equipment Lifespan: By addressing the underlying causes of pump whine, such as contamination or mechanical damage, the lifespan of the hydraulic system components can be extended, reducing the risk of costly repairs or premature replacements.
3. Noise Reduction: Pump whine can contribute to noise pollution in the workplace or surrounding environment. By reducing pump noise, a quieter working environment is achieved, enhancing operator comfort and overall safety.
4. Preventing Further Damage: Promptly addressing pump whine prevents further damage to the hydraulic system and its components, minimizing downtime and potential breakdowns.

Conclusion: Maintaining a Healthy Hydraulic System

Hydraulic pump whine is a common issue in hydraulic systems, but it can be effectively addressed through proper maintenance, diagnosis, and appropriate corrective measures. Regular inspection, fluid maintenance, and component care are essential to prevent contamination, wear, and damage that can lead to pump whine. By understanding the causes, diagnosing the issue accurately, and taking the necessary steps to reduce or eliminate the whining noise, operators can maintain a healthy hydraulic system, prolong the lifespan of equipment, and ensure efficient and reliable operation.

FAQs:

In conclusion, hydraulic pump whine is a common issue that can be caused by various factors such as overworking the system, contamination, inadequate lubrication, cavitation, mechanical damage, and age. Proper diagnosis and maintenance are crucial in addressing pump whine and ensuring the efficient and reliable operation of hydraulic systems. By understanding the causes, conducting regular inspections, and taking appropriate corrective actions, operators can maintain a healthy hydraulic system, extend equipment lifespan, reduce noise pollution, and prevent further damage.
